Stone Cage PVC Coated 4x1x1m Hexagonal Gabion Box Woven Gabion Basket
Woven Gabion Box Information:
Woven Gabion Box also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron. Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
Woven Gabion Box material:
1.Material:Hot dip galvanizedwire,PVC coated wir,eGalfan-coated wire
2.Type:Double twisted hexagonal
3.Surface treatment:Hot dipped galvanized ,electric galvanized and pvc coated.
4. Weaving character:Normal twisted, reverse twisted and double-way twisted.
5.Application:
a.Control and guide of water or flood
b. Prevent of rock breaking
c. Protect rock fall
d. Protect Water and soil protection
e. Protect bridge
f. Strengthen structure of soil
g. Protect engineering of seaside area.
h. Build Port project
i. Keep off dust wall
j. Protect roadway
6.Specification :
| Mesh (mm) | Wire Dia (mm) | Wire Dia(PVC Coated) Inner/outside (mm) | Strands |
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Length (m) | Width (m) | Height (m) | Diaphragm | Volume (m3) | Tolerance |
| 2.0 | 1.0 | 0.3 | 1 | 0.6 | L:+/-3% W:+/-5% H:+/-5% |
| 3.0 | 1.0 | 0.3 | 2 | 0.9 |
| 4.0 | 1.0 | 0.3 | 3 | 1.2 |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 |
| 1.0 | 1.0 | 0.5 | 0 | 0.5 |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |
Woven Gabion Box featuers:
Economic.
Simple installation.
Weather proof under natural destroy.
Corrosion resistant.
Less transport freight.
Flexibility is good.
Corrosion resistance.
Woven Gabion Box Package:
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
Product Tags:
|
|

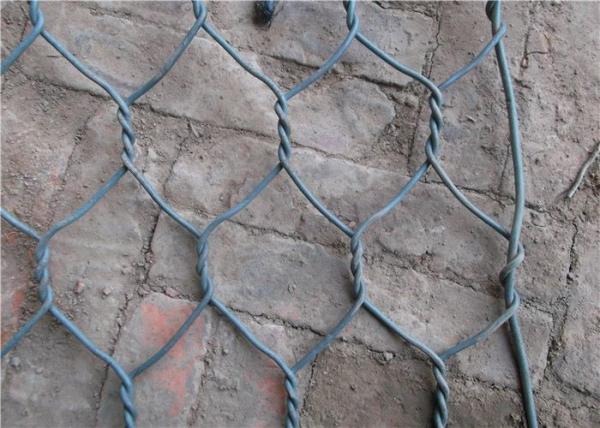

PVC Coated Double Twisted 4x1x1m Woven Gabion Basket Images
|
